Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Vici
  • Model Number: VC890D
  • Measuring Current Range: 0-10A
  • Measuring Voltage Range: 0-1000V
  • Measuring Resistance Range: 0-20MΩ
  • Measuring Capacitance Range: 0-100uF
  • Measuring Inductance Range: 0
  • Operating Temperature: 23±5°C
  • Dimensions: 155mm X 90mm X 48mm
  • Data Hold: yes
  • Continuity test: yes
  • Diode test: yes
  • operation method: manual range

Packaging & Delivery

Packaging Details: Standard packing per carton 30pcs Carton size 38.5*29.5*43cm Standard G.W per carton 16.5kg
Delivery Detail: in 7 days

Specifications

Large LCD with symbol display
Removable holster
High voltage protection
Capacitance:200uF
low price with CE cetification

VC890D 3 1/2­­ Digital multimeter



Features:

1.New type holster, streamline design;
2.Large LCD makes the reading clearly;
3.Strong antimagnetic and anti-jamming performance;
4.Full function protection, anti high voltage circuit design;

5.Unit symbol display, very easy to reading;

6.Measuring range of capacitance:200uF.



We have 20 years experience in manufacturing testing equipments, OEM is welcomed.

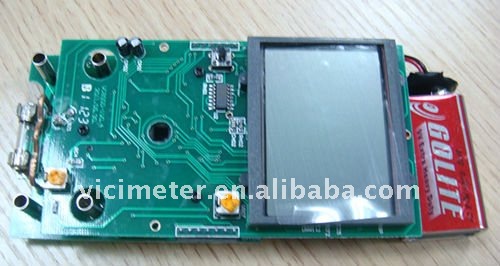

Function Panel:







Back:









This multimeter is low price product, but our quality is the best

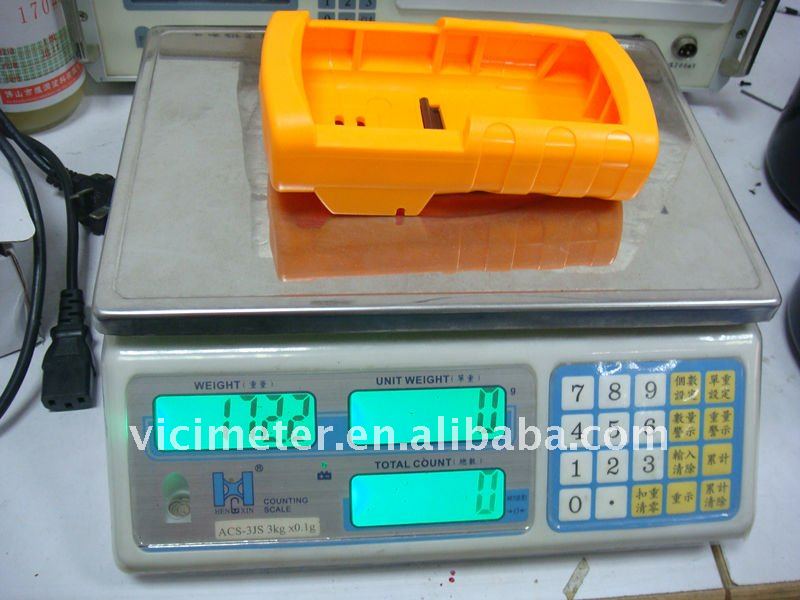

Firstly, our material is very good, all materials are new, not re-injection plastic. We use thick removable holster, it has strong antimagnetic and anti-jamming performance.

Secondly, we have anti-high votage circuit design and for your protection this item is CAT II 1000V rating.

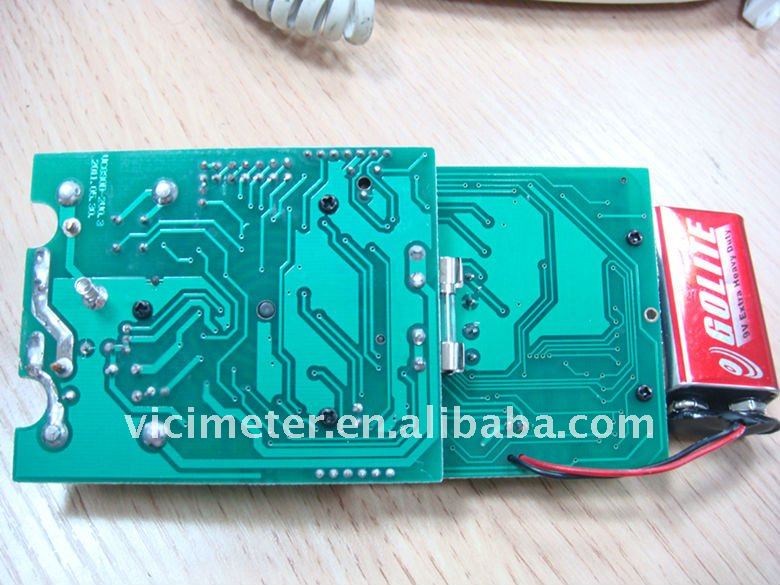

Thirdly, we wash our PCB, few manufacturer do this for their low price DMM, and we also need to get through 5 process of QA before we finish the product.


The price is very low, but we can confident to say that we are the best quality compare to those products with similar or lower price.



Technical data:

Basic function

Range

Basic accuracy

DCV

200mV/2V/20V/200V/1000V

±(0.5%+3)

ACV

2V/20V/200V/750V

±(0.8%+5)

DCA

20mA/200mA/10A

±(0.8%+5)

ACA

20mA/200mA/10A

±(1.5%+5)

Resistance

200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ

±(0.8%+3)

Capacitance

20nF/2uF/200uF

±(3.0%+10)



Special function

VC890D

Diode test

Continuity alarming

Approx. less than 30Ω±10Ω

Low battery indication

Approx less than 7.5V

Data hold

Function protect

Anti-shock protect

Input impendence

10MΩ

Sampling rate

3times/s

AC Frequency response

40-400Hz

Operation way

Manual range

Max. display

1999

LCD size

55x37mm

Battery

9V (6F22)

Power dissipation

Quiescent current approx. 3mA



General characteristic

Color

Body: dark grey, holster: orange (pantone No.:1495U)

Weight

270g(including battery)

Meter size

155×90×48mm

Standard accessory

Test leads, bettery,manual

Packing

Gift box

Standard packing per carton

30pcs

Carton size

38.5×29.5×43cm

Standard G.W per carton

16.5kg

























Gift box:
